The Upgraded Paper Cut Controller System represents a significant evolution in the automation and precision of industrial paper cutting operations. By combining a modern display interface with a powerful motor control architecture, this system delivers high precision, programmability, and reliability — essential features for professional paper handling, cutting, and finishing operations. The system is designed to automate and accurately control the backgauge movement of a paper cutting table, significantly improving workflow efficiency and product consistency in the paper processing industry.
The upgraded paper cut controller is composed of two primary units: the Display Unit and the Controller Unit. These units work seamlessly together to offer an intuitive user interface and an advanced motor control system for highly accurate cutting operations.

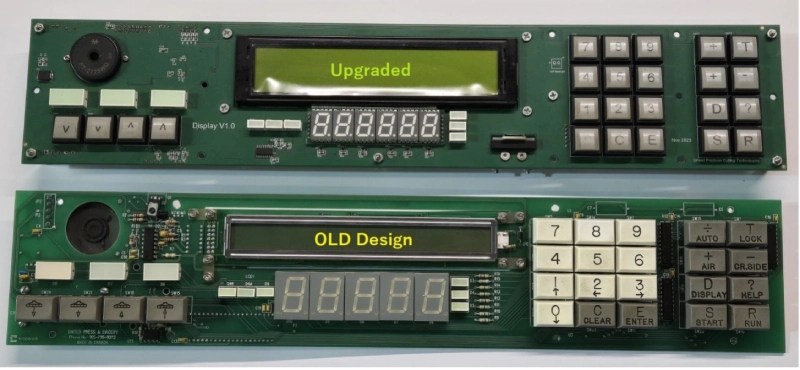

The Display Unit is designed to provide a user-friendly interface for operators, featuring a larger LCD and a modern microcontroller. This unit enables operators to easily define cutting programs, send commands, and monitor the system’s real-time status. The improved readability and responsiveness of the display enhance usability, making it easier for operators to interact with the system, reducing training time and increasing overall workflow efficiency.
Key features of the display unit include:
Larger LCD: Provides clear and easy-to-read information in various lighting conditions.
Microcontroller Integration: Ensures smooth communication between the display and controller, improving system reliability and responsiveness.
User-Defined Cutting Programs: Operators can define and store custom cutting routines, enhancing flexibility and adaptability to different cutting tasks.
The Controller Unit is the heart of the upgraded system. Redesigned around a combination of a microcontroller and an FPGA (Field-Programmable Gate Array), this unit interprets the user-defined programs from the display and precisely controls the movement of the 3-phase motor responsible for positioning the backgauge.
The backgauge defines the alignment of the paper stack for each cut, making its precise movement essential to the overall cutting accuracy of the system. The microcontroller handles high-level logic, while the FPGA enables high-resolution motor control, ensuring that each cut is made with sub-millimeter precision.
At the core of this system’s upgrade is the custom 3-phase motor controller implemented within the FPGA. This architecture enables high-resolution control through PWM (Pulse Width Modulation), which allows the system to manage the motor’s acceleration, deceleration, and phase alignment in real-time. The FPGA-based control system provides several distinct advantages over traditional microcontroller-based designs:
Deterministic Control: By using FPGA logic, the system can generate precise timing and waveforms required to control the motor phases with high accuracy. This level of determinism is difficult to achieve with microcontrollers alone.
Feedback-Based Corrections: The FPGA is capable of real-time feedback integration, using encoders to continuously adjust motor movement, ensuring that the backgauge position is always correct, down to sub-millimeter precision.
Smooth Motor Behavior: Using Sine or Space Vector Modulation (SVPWM) techniques, the motor’s behavior is smooth and stable, which is crucial for high-quality cuts and consistent performance throughout the production process.
Developing and implementing such a controller involves several complex technical challenges, particularly in the realm of real-time motor control and feedback integration. The key challenges addressed in this design include:
High-Frequency PWM Generation: The system generates PWM signals at high switching frequencies to ensure smooth motor operation and precise positioning.
SVPWM for Smooth Motion: Implementing Space Vector PWM ensures that the motor operates smoothly, reducing vibrations and mechanical wear.
Closed-Loop Feedback: Integrating encoders with the control system enables the sub-millimeter positioning precision required for accurate paper cutting.
Real-Time Coordination: The FPGA works in conjunction with the microcontroller to interpret commands from the display, manage system safety, set limits, and handle interrupts in real time.
The Upgraded Paper Cut Controller system brings a multitude of benefits to the paper cutting and finishing industry:
Enhanced Precision: The hybrid microcontroller-FPGA design achieves sub-millimeter accuracy, ensuring that paper is cut precisely according to specifications.
Improved Responsiveness: The FPGA-based motor control ensures that adjustments to the backgauge are made quickly and accurately, resulting in faster cutting cycles and improved production throughput.
Reliability and Durability: The system’s robust architecture and use of high-quality components ensure long-term reliability in demanding industrial environments, reducing downtime and maintenance costs.
Future-Proof Design: The system is designed with upgradability in mind, allowing firmware-level updates that can enable the addition of advanced features such as soft-start, self-calibration, and error diagnostics.
The upgraded Paper Cut Controller represents the growing trend in industrial automation, where the combination of user-friendly interfaces and hardware-accelerated motor control results in easy-to-use systems that provide high-performance operation. This innovative approach ensures that even complex machinery like paper cutting tables can be controlled easily and accurately, while also providing scalability and flexibility for future enhancements.
As paper handling and cutting technology advances, this system offers the precision, efficiency, and reliability required for the most demanding production environments. The integration of advanced technologies such as FPGA-based motor control, real-time feedback, and user-friendly software ensures that manufacturers can meet both current and future demands in the paper processing industry.
